MuleSoft: API Auto Discovery



What Is API Autodiscovery?

API Autodiscovery is a mechanism that manages an API from API Manager by pairing the deployed application to an API created on the platform. API Management includes tracking, enforcing policies if you apply any, and reporting API analytics. Critical to the Autodiscovery process is identifying the API by providing the API name and version.



By configuring autodiscovery, you can use policy management and API Analytics accessed from within API Manager.



When autodiscovery is correctly configured in your Mule application, you can say that your application’s API is tracked by the API Manager.



Prerequisites



To configure auto discovery for Mule application..



1. API must exist in API Manager

2. Mule must be configured to use AnyPoint Platform credentials in AnyPoint Studio

3. The auto discovery element must be configured in Mule application.

4. Need environment client_id and client_secret.

client_id and client_secret are available from AnyPoint Platform>Access Management>Environment.



NOTE: An API in a Mule runtime can only be connected with one Autodiscovery instance. Two/more Autodiscoveries can't be connected with same API



Step 1: Create an API

Create a sample API specification in the Design Center.

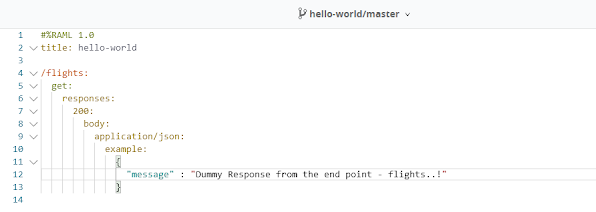

Follow below steps to create sample RAML

AnyPoint Platform > DesignCenter > Create New





Step 2: Test the API

You can test the API by enabling the mocking service. If you see any issues, then verify the RAML and fix the issues and test it again

If there are no errors, then Publish it to Exchange.







After successfully published, API is available in Exchange as shown below..







Step3:

Once the RAML is published to Exchange, it can be managed through API Manager



In the API Manager> click on Manage API and select Manage API from Exchange.







Enter few characters of your API name and then select it from drop down menu.

Check the box for the Mule version as we are managing it in Mule4.

 Click on Save

 Then, API is visible in the API manager but the status is “Unregistered"

 It means, it has not yet been associated with an actual API implementation.





You can see API Autodicovery tag and API ID

 This will help us to pair the API in the API Manger to its deployed Mule Application.

    Note: Copy API ID

 Go to Policies



Select Rate limiting policy and click on Configure Policy



Here the policy allows only 5 requests in 1 min. You can change it as per your requirement.

Under Actions: you can Edit, Disable, Remove if required.



Step 4:

Go to Access Management



Click on Environments and select Sandbox





Copy Client ID and Client Secret and paste it in Notepad and remove any trailing spaces

 Step 5: CREATE A MULE PROJECT

 Go to Anypoint studio. Create a Mule Project, and import the newly created API from the design center. You can do any necessary changes required according to your requirement.
